Description

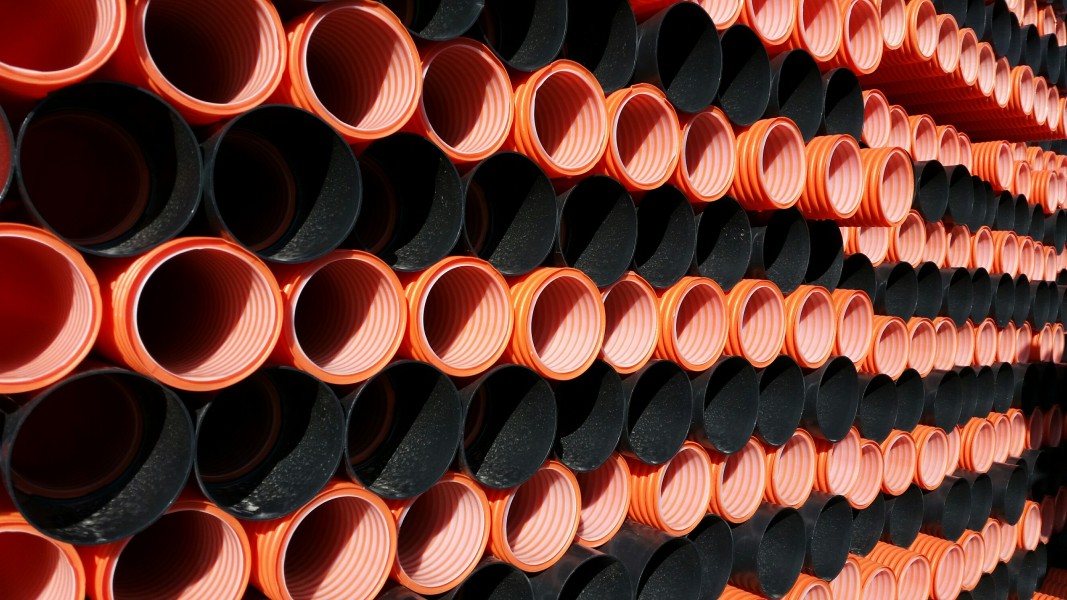

Twin Wall HDPE ducting offers the advantages of a lightweight flexible product combined with high strength and durability. Both coils and lengths are designed to meet the required compression strength to current Highways specification and are supplied in various colours and markings to suit NJUG recommendations.
Manufactured in polyethylene, the external corrugated profile gives the product added strength and the internal bore is smooth to prevent cables from snagging. If required, a sealed joint may be achieved by using two profile seals and a push fit coupling.
The diameters below are supplied in 6 metre lengths
50/63mm Twin Wall duct c/w coupling – available in orange “STREET LIGHTING”/”TRAFFIC SIGNAL” only
94/110mm Twin Wall duct c/w coupling – available in all colours
100/120mm Twin Wall duct c/w coupling – available in black ENATS Class 2 UKPN specification only
125/145mm Twin Wall duct c/w coupling – available in black ENATS Class 2 UKPN specification only
137/160mm Twin Wall duct c/w coupling – available in black electric, yellow and blue
150/178mm Twin Wall duct c/w coupling – available in all colours
150/178mm Twin Wall duct c/w coupling – available in black ENATS Class 2 UKPN specification only
225/265mm Twin Wall p/e solid pipe – available in black, yellow & blue only
300/355mm Twin Wall p/e solid pipe – available in black, yellow & blue only
375/426mm Twin Wall p/e solid pipe – available in black only
450/512mm Twin Wall p/e solid pipe – available in black only
450/516mm Twin Wall p/e solid pipe – available in yellow & blue
500/576mm Twin Wall p/e solid pipe – available in black only
600/680mm Twin Wall p/e solid pipe – available in black only
750/842mm Twin Wall solid pipe c/w coupling – available in black only
900/1016mm Twin Wall solid pipe c/w coupling – available in black only
1050/1192mm Twin Wall solid pipe c/w coupling – available in black only
ENATS 12 24_ BBA Certification
Larger pipe sizes from 1200mm – 4000mm also available which can be used as ducting, if required.

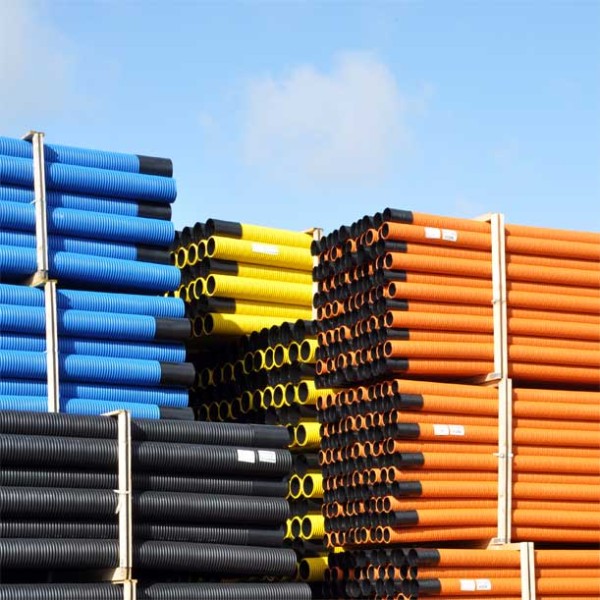

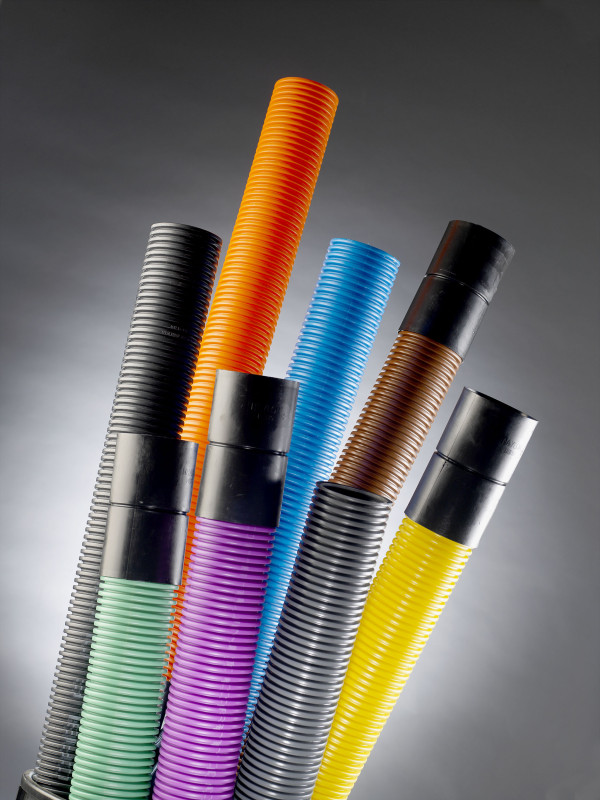

Unless stated otherwise duct is available in the following colours:
Black (electric)
Yellow (gas)
Blue (water)
Green (telecommunication)
Orange (street lighting or traffic signal)
Purple (motorways)
Red (electric – Scotland)
Twin Wall Class 1 duct is manufactured from polypropylene and is suitable for high voltage applications and fully complies with the ENATS 12-24 Class 1 specification. Class 1 polypropylene duct has a 450N compressive strength at 75°C. Available in sizes 100mm, 125mm and 150mm in 6m lengths as standard, it can also be supplied in 2m and 3m lengths. Supplied with a black outer and red inner as standard, Twin Wall HV duct can also be manufactured with a red outer and red inner upon request. This product is supplied with an integral coupler. Double socket bends, couplers and trefoil clips are available.
Split duct is also available both in HDPE and PVC in a variety of lengths and sizes.
