Single Wall uPVC Fibre & Power Duct

Description

Single wall uPVC duct is used for communication and power cables. Available in a variety of sizes in black for electricity, grey for British Telecom, green for Virgin Media & purple for Motorway & Fibre, depending on the contract, and white for Vodafone. Manufactured in accordance with the relevant quality standards and available in the following sizes:

53.9mm Grey BT Cable Duct c/w socket
96.5mm Grey BT Cable Duct c/w socket
53.9mm Green CATV Cable Duct c/w socket
88.9mm Green CATV Cable Duct c/w socket
96.5mm Green CATV Cable Duct c/w socket

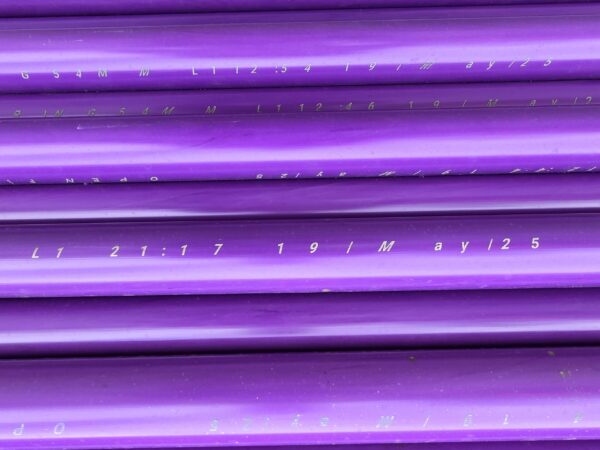

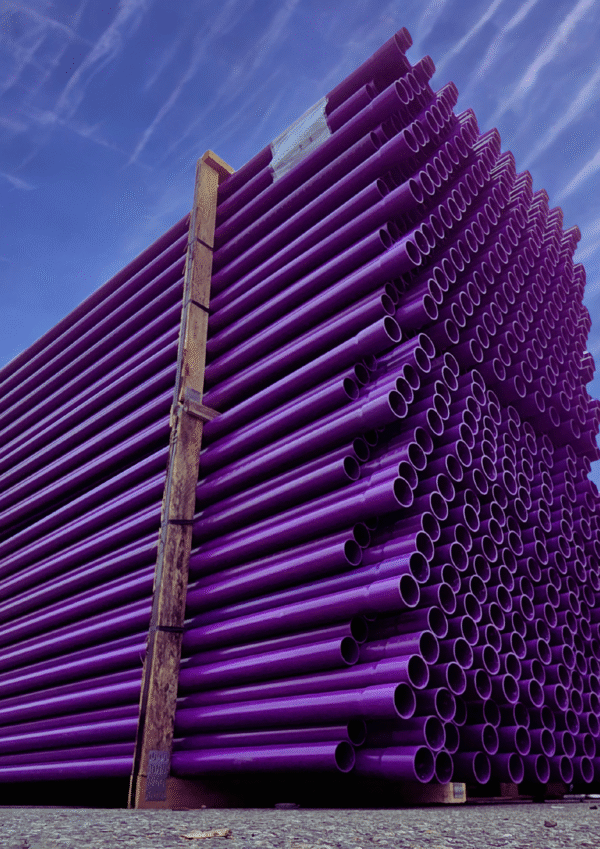

53.9mm Purple Motorway & Fibre Duct c/w socket
96.5mm Purple Motorway & Fibre Duct c/w socket

38/34mm Black and Red Class 1 Cable Duct
42/38mm Black and Red Class 1 Cable Duct
50/45mm Black and Red Class 1 Cable Duct
53.9/49mm Black and Red Class 1 Cable Duct
63/58mm Black and Red Class 1 Cable Duct
75/68mm Black and Red Class 1 Cable Duct
88.9/82mm Black and Red Class 1 Cable Duct
96.5/89mm Black and Red Class 1 Cable Duct
110/102mm Black and Red Class 1 Cable Duct
125/116mm Black and Red Class 1 Cable Duct
140/131mm Black and Red Class 1 Cable Duct
160/150mm Black and Red Class 1 Cable Duct
168/158mm Black and Red Class 1 Cable Duct
180/169mm Black and Red Class 1 Cable Duct
200/188mm Black and Red Class 1 Cable Duct
225/213mm Black and Red Class 1 Cable Duct
250/237mm Black and Red Class 1 Cable Duct

38/34mm Black and Red Class 2 Cable Duct
42/38mm Black and Red Class 2 Cable Duct
50/46mm Black and Red Class 2 Cable Duct
53.9/50mm Black and Red Class 2 Cable Duct
63/59mm Black and Red Class 2 Cable Duct
75/69mm Black and Red Class 2 Cable Duct
88.9/82mm Black and Red Class 2 Cable Duct
96.5/90mm Black and Red Class 2 Cable Duct
110/103mm Black and Red Class 2 Cable Duct
125/118mm Black and Red Class 2 Cable Duct
140/132mm Black and Red Class 2 Cable Duct
160/151mm Black and Red Class 2 Cable Duct
168/159mm Black and Red Class 2 Cable Duct
180/171mm Black and Red Class 2 Cable Duct
200/190mm Black and Red Class 2 Cable Duct
225/215mm Black and Red Class 2 Cable Duct
250/239mm Black and Red Class 2 Cable Duct

Split duct is also available both in PVC and HDPE.

Subduct is also available for use with uPVC duct. This high performanc, low-friction HDPE subduct provides excellent cable protection and management for underground networks.
Low Friction Subduct 50-43mm_DI_v01
