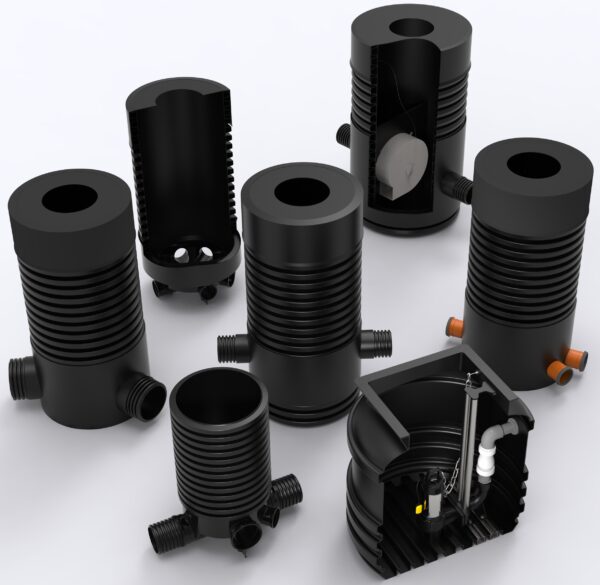

Complimenting the drainage systems which are available from Plastech (Southern), both adoptable and non-adoptable inspection chambers & catchpits are available, which can take HS®, EN1401 and Twin Wall pipes.
Accesso Orange Range IC110 & IC160 chambers offer versatility & flexibility as well as giving a significant overall saving on installation costs when compared to the traditional installations such as PCC chamber ring, preformed chambers and wet trades.
All Accesso IC110 & IC160 chambers are classed as non-man entry access and limited to 3 metre inverts in adoptable installations, whilst in non-adoptable applications they are limited 6 metre depths. This is stipulated in Sewers for Adoption 7th Edition (Sfa7) and both the IC160450 & IC60600 range comply with SfA7 type 3 & 4 chamber specifications, which states that if the invert is above 1.2 metres then the access must be restricted to 350mm for safety compliance.
Manufactured from high strength polypropylene, the IC110 & IC160 chambers are strong, extremely robust and can be installed in a minimum granular surround or suitable ‘as dug’ material. Whether you are installing a kit or single piece unit, Accesso IC units offer a fully watertight chamber preventing the pollution of soils and ingress of water tables. They are also effective against aggressive soils and leachete from polluted land.
The IC110 450mm Ø & 600mm Ø bases have a straight 110mm channel, two 110mm inlets at 90° and two left/right 45° branch inlets. IC160 450mm Ø & 600mm Ø have a straight 160mm channel, two 160mm inlets at 90° and two left/right 45° branch inlets. Standard chambers are available as either a complete single piece unit up to 2 meters deep or as a 3-part kit up to 6 metres that can be assembled on site.
The Accesso Blue range of chambers are designed to be compatible with all UK Twin Wall pipe systems & specifically for surface water systems. They can however also be adapted to take structured wall drainage and other pipe systems. All Accesso ranges are designed for use in non-man entry access and inspection applications for inverts up to 3 metre in adoptable applications and 6 metres in non-adoptable applications, as stipulated in Sfa7.
The Accesso IC is a range of 600mm Ø inspection chambers with the option of a single straight half channel through the base and available with the option of either a 45° or 90° side inlet for secondary connections. Available in chamber depths of 1 and 2 metre in the single channel and 1 metre in the side inlet range.
The Accesso ICCP is a range of 600mm Ø inspection chambers with a 500mm deep catchpit for trapping silt and debris. The catchpit will provide 250 litres of solids retention to the pipe work.
Accesso Blue Range also has a number of accessories. These include:
Access Extension Riser – The inverts on the chambers can be increased above 1200mm by using an Access Extension. However above 1200mm then the access needs to be restricted to 350mm for safety, and again, as stipulated in SfA7.
Access Reducer Cap – A sealed cap to fit over the access which has a 350mm opening that will accommodate most access covers of this size.
Adaptors & Reducers – a range of adaptors & reducers to connect to other pipework.
