Description
Service & distribution barrier pipe is a system which has been specifically engineered and designed to protect potable water in contaminated land. Our barrier pipes combine the proven benefits of polyethylene with the barrier properties of aluminium.

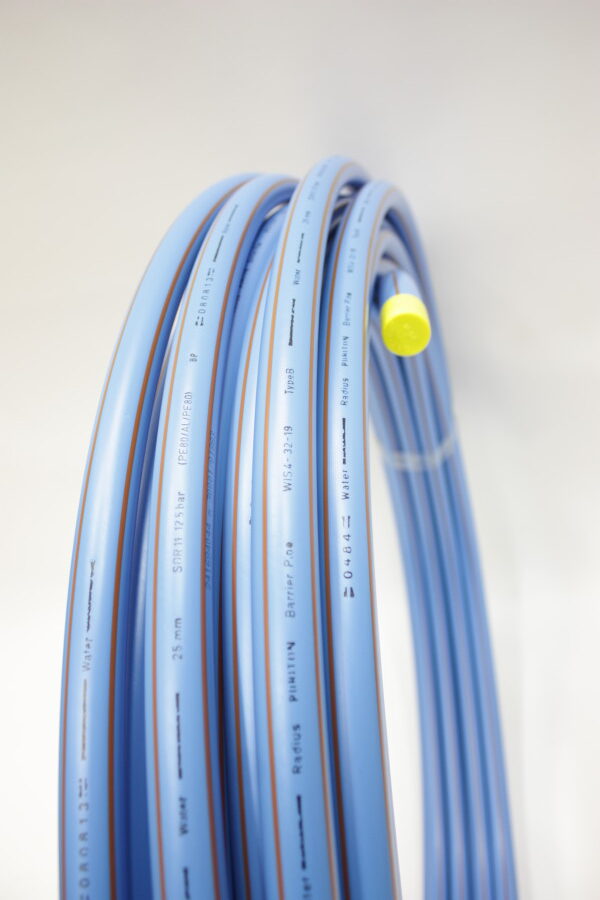

Supplied in blue with brown stripe, PE barrier pipes have revolutionised the way we transport potable water through contaminated ground.
For over 15 years, water companies, contractors and self-lay organisations have been using barrier pipe systems to transport drinking water through contaminated land with complete confidence that it will maintain the quality and safety of the water supply.
Available in diameters from 25mm to 630mm with a comprehensive range of fittings to provide a full contamination resistant system solution.
Available size:
Service Pipe
25mm Ø PE80 SDR11 12.5 bar available in 50 metre coils
32mm Ø PE80 SDR11 12.5 bar available in 50 metre coils
63mm Ø PE80 SDR11 12.5 bar available in 6 metre lengths & 25, 50 or 100 metre coils
Mains Pipe
90mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths & 50 or 100 metre coils
110mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths & 50 or 100 metre coils
125mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths & 50 or 100 metre coils
160mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths & 50 or 100 metre coils
180mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths & 50 or 100 metre coils
225mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
250mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
315mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
355mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
400mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
450mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
500mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
630mm Ø PE100 SDR17 10 bar & SDR11 16 bar available in 6 or 12 metre lengths
Approvals:
BS 8588:2017
