Ductile Iron Gully Grates

Description

Manufactured from ductile iron and available in a range of sizes and loadings, the gully grates we supply have been designed to meet the rigours of increasing traffic loadings with the benefits of both double triangular and hinged as well as kerb gully units and V-Gullies for roadside drainage.

All Ductile iron products are manufactured to meet the requirements of BS EN 124:1994 and are third party certified by BSI Kitemark or SGS. Where applicable, Plastech (Southern) Ltd also supply a range of products which meet the requirements of advice note HA104/09.

Some of the sizes available (clear opening):

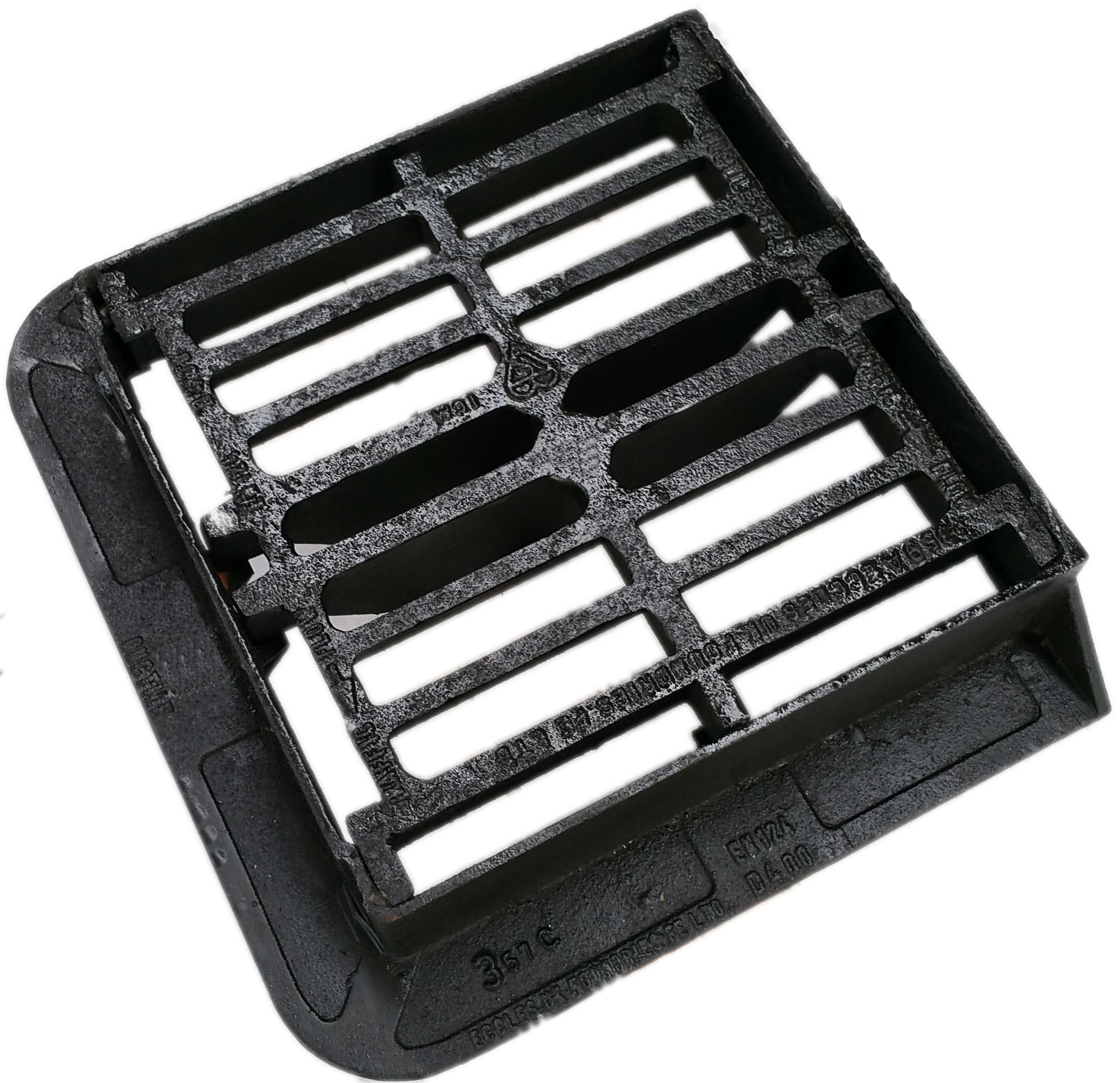

300x300mm x 50mm frame depth – B125 hinged & dished
300x300mm x 75mm frame depth – C250 hinged & dished
420x420mm x 100mm frame depth – captive hinge & reversible
450x450mm x 150mm frame depth – captive hinge & reversible
430x370mm x 150mm frame depth – captive hinge traffic flow only

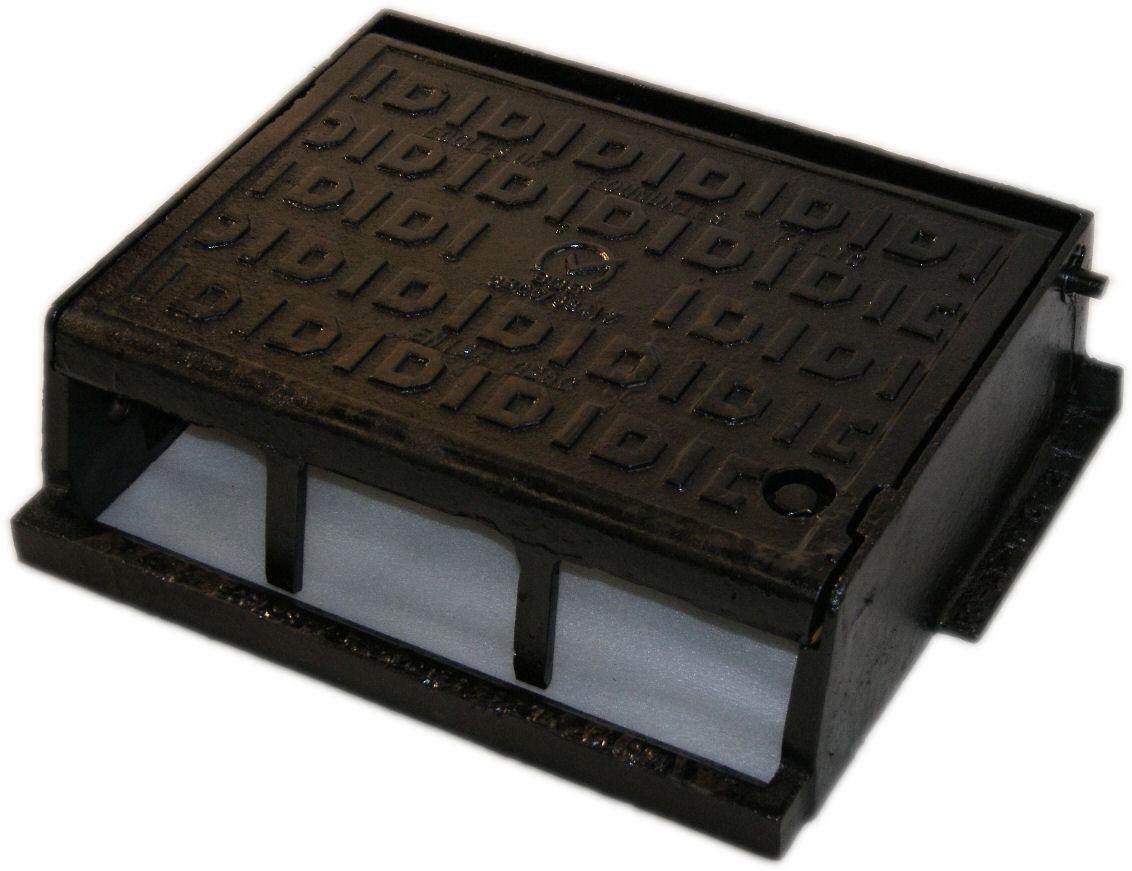

430x370mm x 150mm frame depth – captive hinge kerb only
435x435mm x 100mm frame depth – double triangular
440x400mm x 150mm frame depth – double triangular
600x600mm x 100mm frame depth – double triangular

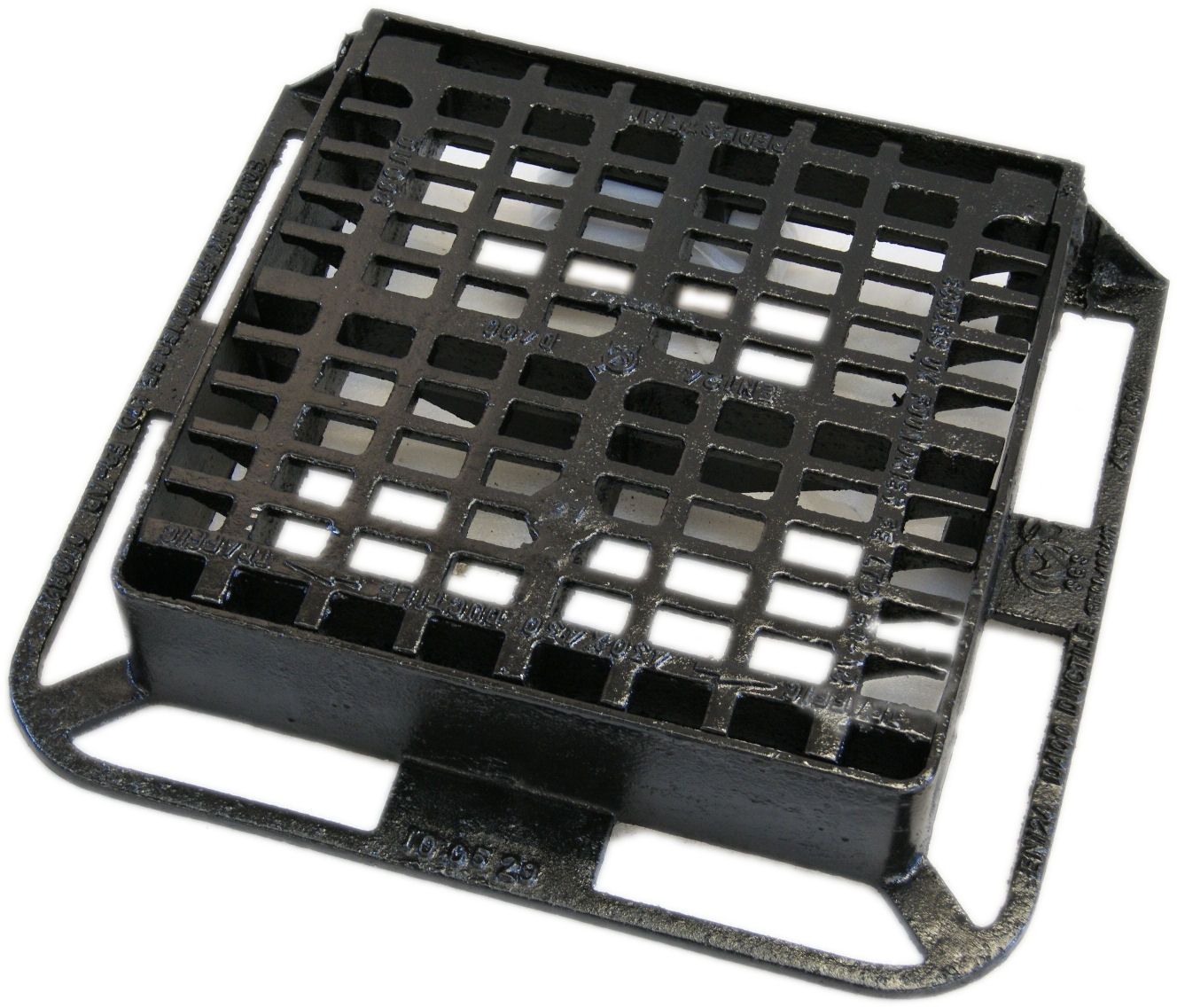

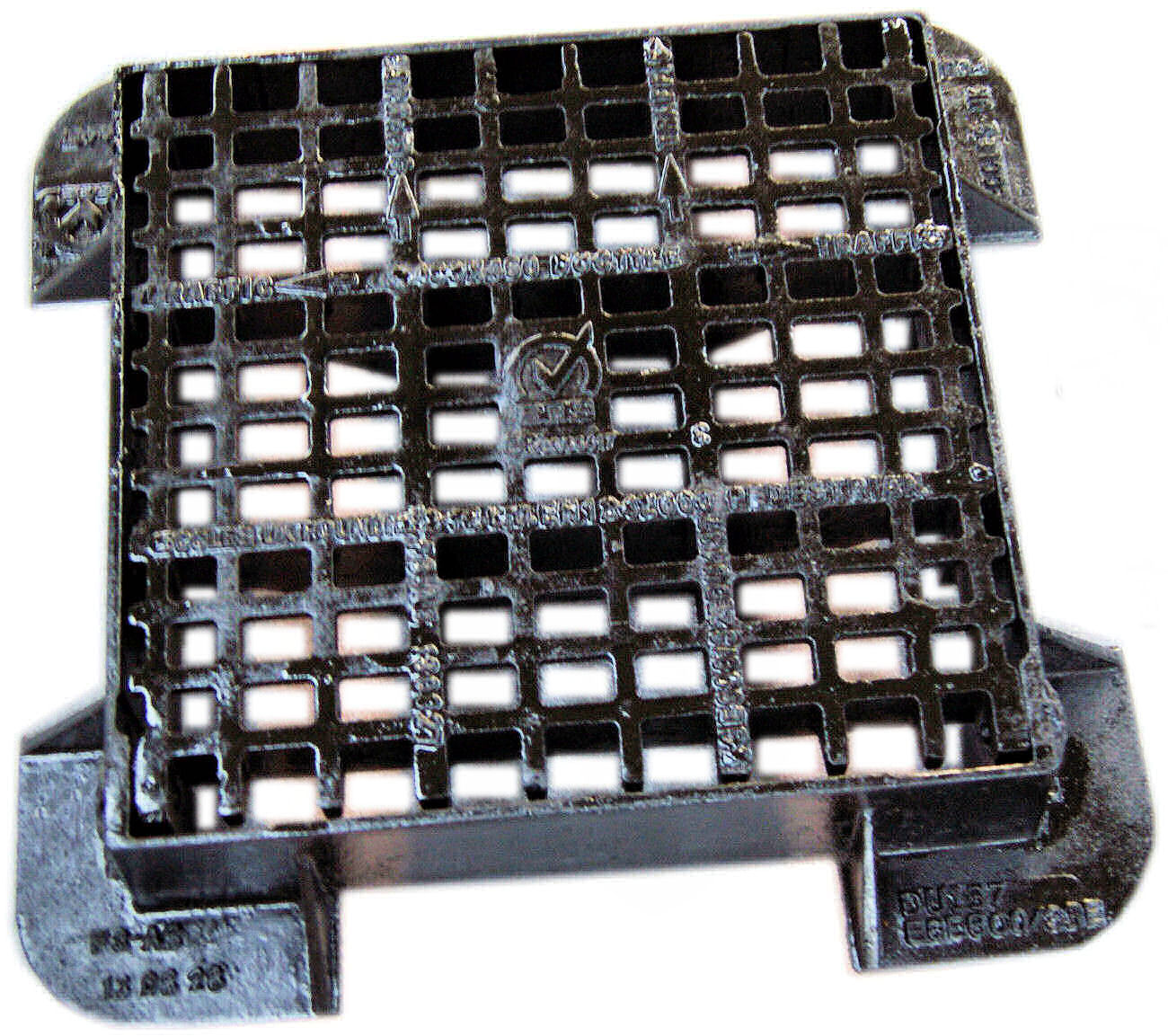

430x370mm x 100mm frame depth – pedestrian friendly & captive hinge traffic flow only
430x430mm x 100mm frame depth – pedestrian friendly & captive hinge kerb only
