D400 Structural Hydrant System

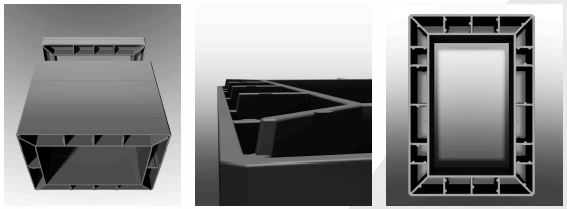

D400 Structural Hydrant System - Image 2
D400 Structural Hydrant System - Image 3
D400 Structural Hydrant System - Image 4

D400 Structural Hydrant System

Ecolite hydrant chambers are an innovative structural access system for underground installations.
An ideal solution for water utilities and other ducted network applications where there is a requirement for inspection and maintenance.

Category: Utility Network Access Chamber Systems
  • Description
  • Product Enquiry

Description

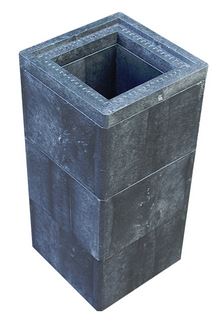

Hydrant chambers are formed by interlocking rectangular rings. Several ring sizes are available and can be placed on some pre-existing concrete chambers.

Available in 150mm depths, with some section sizes also available in 50mm and 25mm depths, reinforcing the beneficial lightweight and easy to install properties. The sections are able to support up to F900 loadings in some sizes.

Manufactured from recycled polypropylene which can be recycled at the end of its life span, all of the hydrant parts are highly resistant to attack from most acids and alkalis and other forms of chemical erosion, unlike cement.

Any depth is available, although greater depths on chambers of large width or breadth may need reinforcing. Any combination of sizes that are on the list and are equal to, or exceed 600mm, are available but may need reinforcing. Please ask for further details.
